Standard LC-WorkstationsTM mobile lab benches (HPLC Bench)

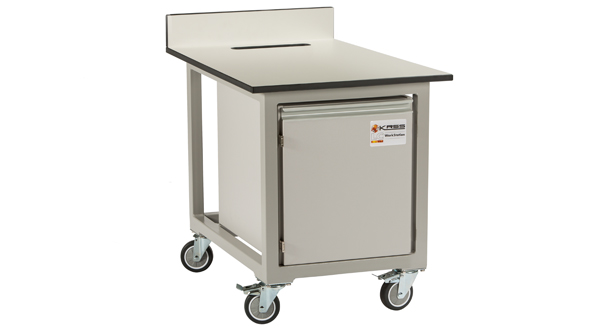

LCWS-01 Laboratory Bench Technical Data |
||||
HPLC-Workstation for stackable HPLC System, single width stack with integrated solvent waste cupboard. |
||||
 |
||||
| Dimensions | Frame Dimensions | Work Surface Dimensions | ||
MM |
Inch |
MM |
Inch |
|
Width |
500 |
19.7 |
600 |
23.6 |
Depth |
770 |
30.3 |
870 |
34.3 |
Height |
700 |
27.6 |
||
Max. Weight |
450 Kg |
992 lbs |
||
| GET A QUOTE >> | ||||

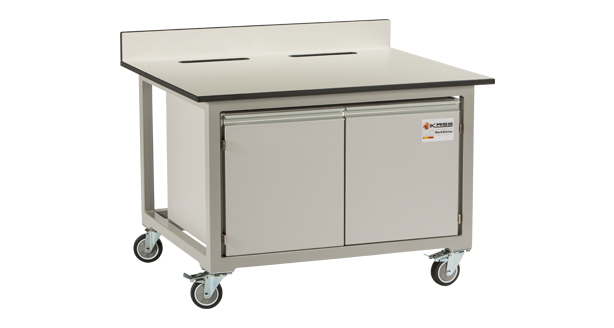

LCWS-02D Laboratory Bench Technical Data |
||||
HPLC-Workstation for stackable HPLC System, double width stack with integrated solvent waste cupboard. |
||||
 |
||||
| Dimensions | Frame Dimensions | Work Surface Dimensions | ||
MM |
Inch |
MM |
Inch |
|
Width |
900 |
35.4 |
1000 |
39.4 |
Depth |
770 |
30.3 |
870 |
34.3 |
Height |
700 |
27.6 |
||
Max. Weight |
450 Kg |
992 lbs |
||
| GET A QUOTE >> | ||||
LCWS-03 Laboratory Bench Technical Data |
||||
HPLC-Workstation for stackable HPLC System, single width stack. |
||||
 |
||||
| Dimensions | Frame Dimensions | Work Surface Dimensions | ||
MM |
Inch |
MM |
Inch |
|
Width |
500 |
19.7 |
600 |
23.6 |
Depth |
770 |
30.3 |
870 |
34.3 |
Height |
700 |
27.6 |
||
Max. Weight |
450 Kg |
992 lbs |
||
| GET A QUOTE >> | ||||
LCWS-04 Laboratory Bench Technical Data |
||||
LCMS Workstation for Single Quad LCMS Systems (LC Stack and MS i.e 1260/6120 or 1100/G1946D) with Integrated Quietbox, Cupboard, Drawer and Sample Prep Tray. |
||||
|
||||
| Dimensions | Frame Dimensions | Work Surface Dimensions | ||
MM |
Inch |
MM |
Inch |
|
Width |
1180 |
46.5 |
1500 |
59 |
Depth |
770 |
30.3 |
870 |
34.3 |
Height |
960 |
37.8 |
||
Max. Weight |
450 Kg |
992 lbs |
||
| GET A QUOTE >> | ||||

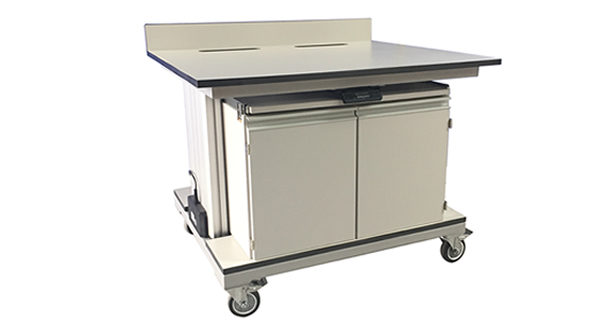

LCWS-05 Laboratory Bench Technical Data |
||||
HPLC-Workstation for stackable HPLC system, double width stack with integrated solvent waste cupboard, sample preparation tray and electronic adjustable height. Each telescopic leg of the mechanism can handle compressive forces of up to 3,000 N. |
||||
 |
||||
| Dimensions | Frame Dimensions | Work Surface Dimensions | ||
MM |
Inch |
MM |
Inch |
|
Width |
900 |
35.5 |
1000 |
39.4 |
Depth |
750 |
29.5 |
850 |
34 |
Height |
770-1420 |
30.3-56 |
||
Max. Weight |
450 Kg |
992 lbs |
||
| GET A QUOTE >> | ||||
Inte-gen LC-Workstations/ hplc bench are ergonomically designed to make it easier to use your LC by providing a number of unique features and benefits.
Lockable Casters (standard option)
Mounted on solid lockable casters the LC-Workstation allows for the instrument to be located against a wall or other system, when required the complete system can be moved for maintenance or relocation.
Chemically Resistant* (standard option)
Manufactured from powder coated steel, Trespa chemically resistant work top and chemically resistance lockable casters.
*Where specified.
Single and Double Stack (standard option)
Available for single and double stack configurations.
3 Years Warranty (standard option)
In the unlikely event of a fan failure, the simple modular design allows for an exchange panel to be sent for replacement. First contact KRSS to request your replacement panel. Once a panel arrives simply disconnect the power cable. Swap the panels and return the original panel to KRSS.
Customised Badge (standard option)Let us know the name of your system and we will add it to the MS-Workstation badge FREE of charge for easy identification.
Save valuable lab space (standard option)
LCD screen mount with an adjustable stand for easy and convenient viewing.
Custom Sizes (optional extra)
As we manufacture every part of the workstation we can customise the sizes to meet your requirements.
Drawer Options (optional extra)
Add either three drawer or one drawer system to you workstation.
Manual Height Adjustment (optional extra)
Our manual height adjustment system allows you to change the height of the workstation. The system must be removed from the bench before you can adjust the height.
Electronic Height Adjustment (optional extra)
Our electronic height adjustment system allows you to change the height of the workstation via two high powered electrical legs. The full hplc system can remain in place while the height is adjusted. The soft touch keypad allows the system to memorise 4 height settings for quick height adjustment.
